File Worker

The file worker manages every file uploaded to fylr: it stores the original and generates the preview versions (renditions) from it.

The file worker takes care of every file that is uploaded to fylr. It has two jobs:

  • Store the file — the uploaded original is kept in a storage location and can always be downloaded again unchanged.

  • Generate versions — from the original the file worker produces a set of versions (also called renditions): smaller preview images, thumbnails, a web-friendly video, a PDF of an office document, and so on. Versions are what the frontend shows in search results and detail views, and what most users download.

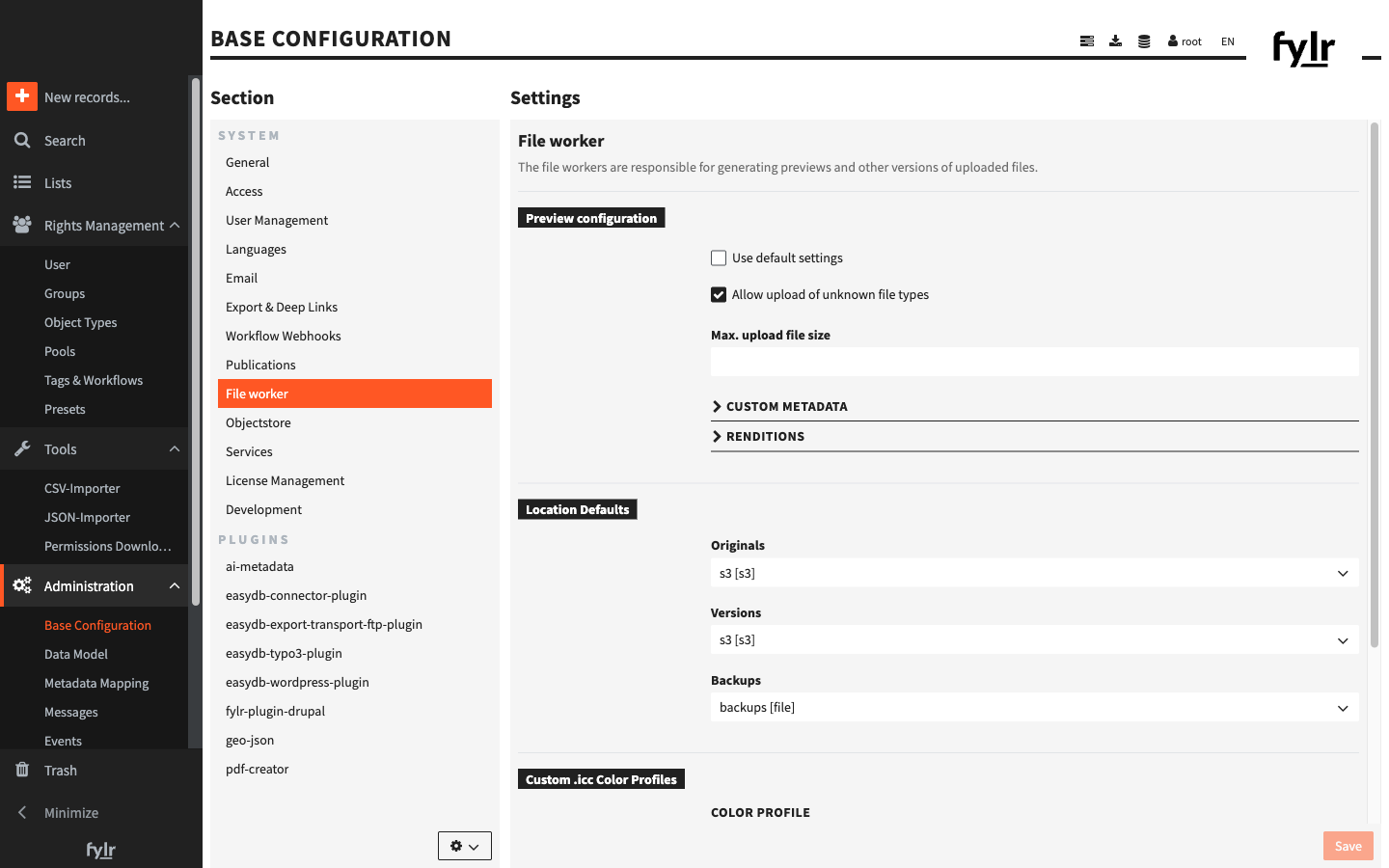

The File Worker section of the base configuration

File classes

Every uploadable file type belongs to one of four file classes. The file worker handles each class with its own tools and its own set of versions:

CLASS
EXAMPLES


jpg, png, tiff, gif, heic, camera raw (cr2, nef, dng, …), svg, ai, eps, psd

Audio

mp3, wav, flac, m4a, aac, ogg

Video

mp4, mov, avi, mkv, webm, mpeg

Office

pdf, doc(x), xls(x), ppt(x), odt, rtf, txt, indd, fonts (ttf, otf)

For each class you decide which file extensions may be uploaded at all, and which versions are generated for them. See Preview Configuration.

Versions and recipes

A version is one rendition of an original — for example a 250 px thumbnail or a 1000 px preview. Each version is produced by a recipe: a named conversion routine (for example imageconverter:browserthumbs resizes an image, officeconverter:pdf turns a document into a PDF). The recipe's options — output format, size, quality and so on — are what turn the original into that specific version. The recipes and their options are documented on the Preview Configuration page.

Some versions are derived from another version instead of from the original: the watermarked preview is built from the preview version, and previews of vector files (ai, eps, wmf) are built from a generated svg. This source version chaining means that re-generating a source version also re-generates everything built on top of it.

Standard, rights-management and watermark versions

  • A standard version (such as preview and small) is the one shown by default — in search results, in the detail view and so on.

  • A version marked for rights management can be restricted per pool or object type in the permissions; versions without it are always accessible to everyone who may see the record.

  • A watermark version carries the pool watermark and is used together with rights management to hand out watermarked previews.

Storage

The file worker keeps three kinds of data, each in its own storage location:

  • Originals — the untouched uploaded files.

  • Versions — the generated renditions.

  • Backups — backup copies.

When versions are generated

Versions are generated when a file is uploaded. Changing the version configuration therefore only affects files uploaded afterwards — existing files keep their current versions until you re-generate them with a resync. See Regenerating preview images, and Changing the preview format for the special case of switching a version's file format.
